Demo 03 · Education · Course material

Five exam PDFs into a study app.

A concurrency course leaves behind five past papers and twelve topics. Nobody can revise from that. One pipeline turns the PDFs into questions the model understands, and everything after it comes for free.

The pipeline

One run reads the papers

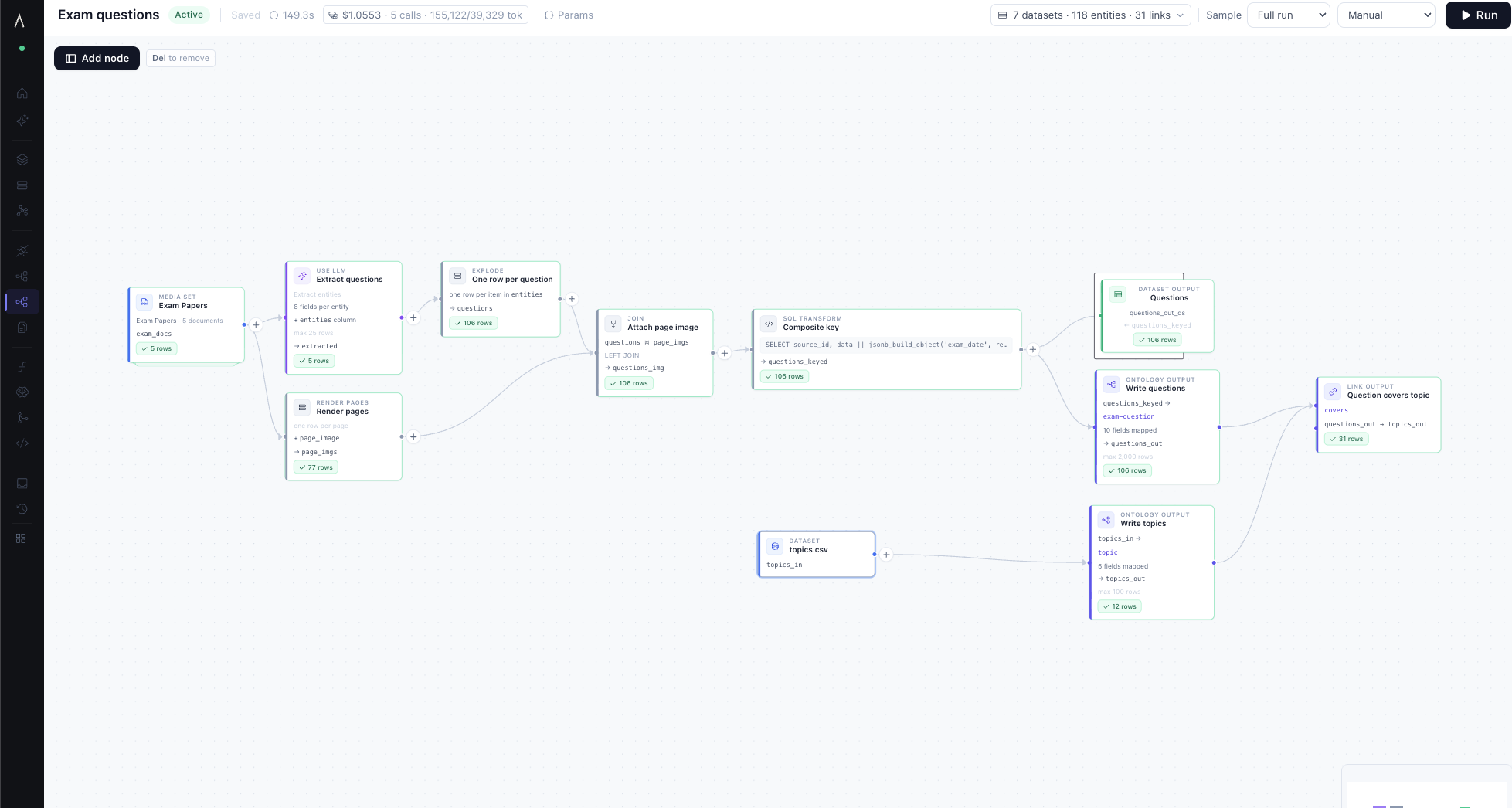

The Exam Papers media set holds five PDFs. An LLM node extracts every question with eight fields each; an explode node turns each paper into one row per question. In parallel the pages are rendered as images, so every question keeps a picture of the page it came from, joined back on a composite key.

Two ontology outputs write the questions and the topics as entities. A link output connects them: Question covers topic. Nothing here is bespoke code.

rhetra · pipelines · Exam questions
The Exam questions pipeline: media set, LLM extraction, explode, page render, join, SQL transform, and three ontology outputs

7 datasets · 118 entities · 31 links · 5 model calls · 155,122 tokens in · $0.0553 · 149.3s

The model

Questions, clustered by topic

The graph after the run: 107 nodes, 96 edges. Races, Locks and Semaphores carries 35 questions. Parallelizing Computations carries nine. The examiner's bias is visible before anyone has read a paper, and it is a query rather than a hunch.

Each red node is a question with its date and number, so any cluster can be opened down to the exact wording on the exact page.

rhetra · graph explorer · study
Graph explorer with exam question nodes radiating from topic nodes
The agent

Ask the workspace what is in it

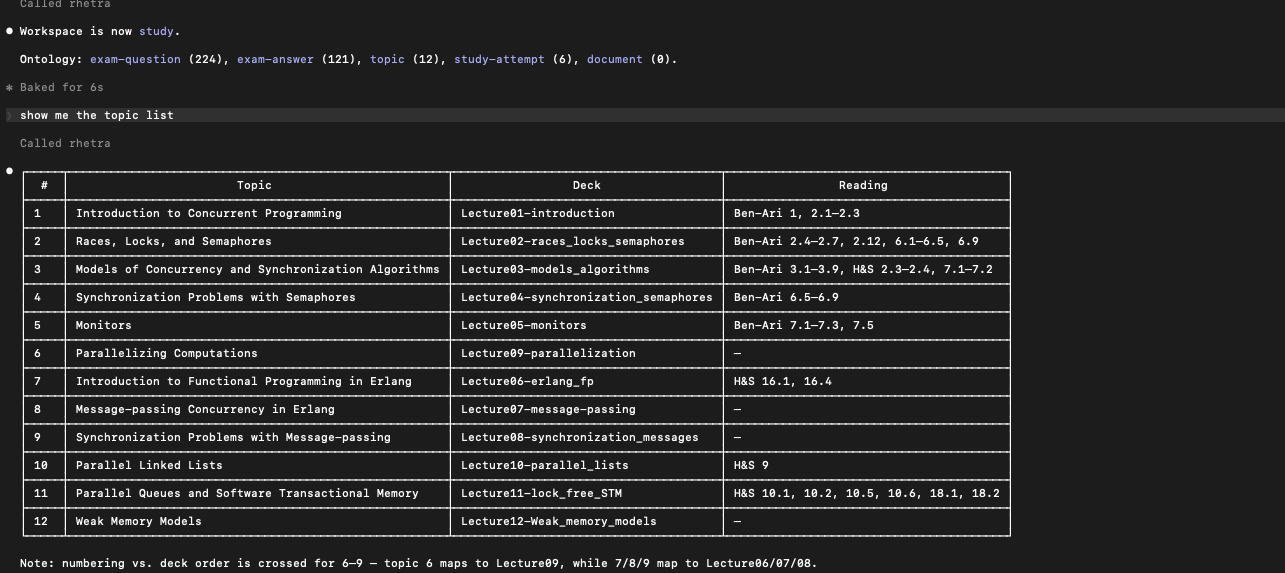

Over MCP the workspace reports its own contents: exam-question 224, exam-answer 121, topic 12, study-attempt 6. Asked for the topic list, it returns all twelve with the lecture deck and the reading for each.

Then it volunteers something nobody asked for: the topic numbering and the deck order disagree for 6 through 9. That inconsistency was in the source material the whole time. It surfaced because the material is typed.

rhetra mcp · agent session
Agent session listing the ontology contents and returning the twelve course topics with decks and readings
The build

One prompt built it

The session over MCP, compressed. The pause is the action approval.

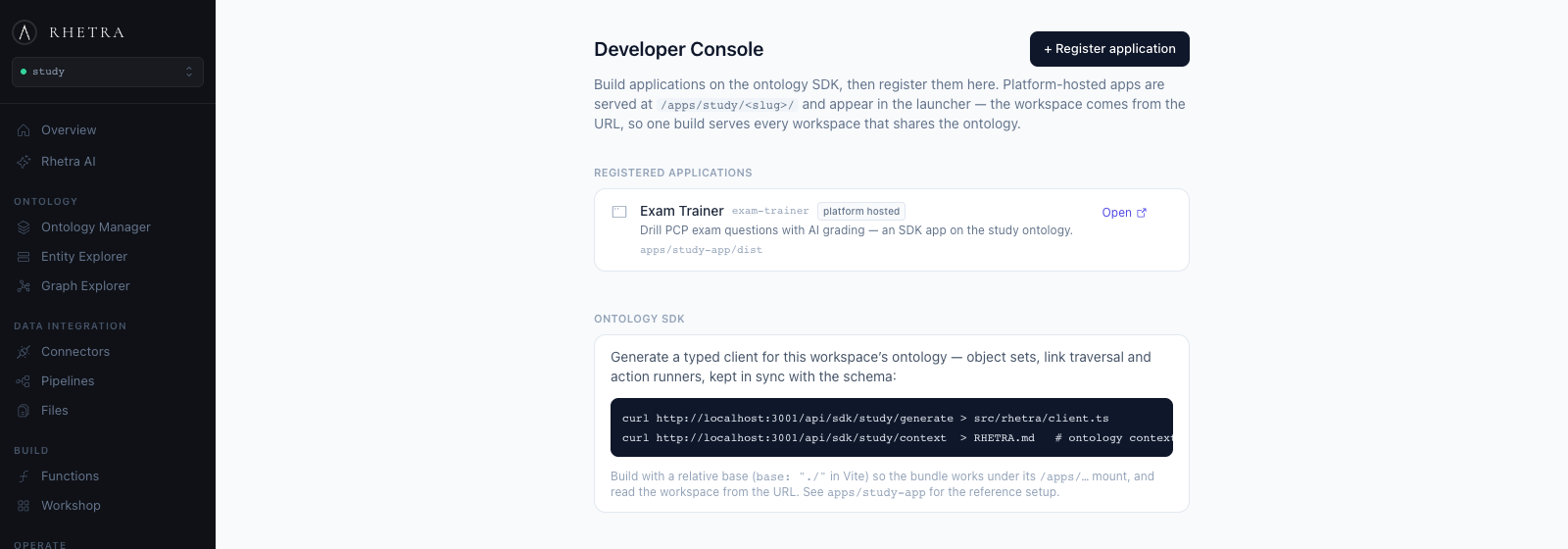

The app is not wired to a database. One command generates a typed client from this workspace's ontology, object sets, link traversal and action runners, kept in sync with the schema. The app is built against that client, registered in the Developer Console, and served from the workspace itself.

rhetra · developer console · study
Developer Console with Exam Trainer registered as a platform-hosted app, and the two commands that generate the typed ontology client

exam-trainer · platform hosted · served at /apps/study/exam-trainer/

The application

An app that drills you

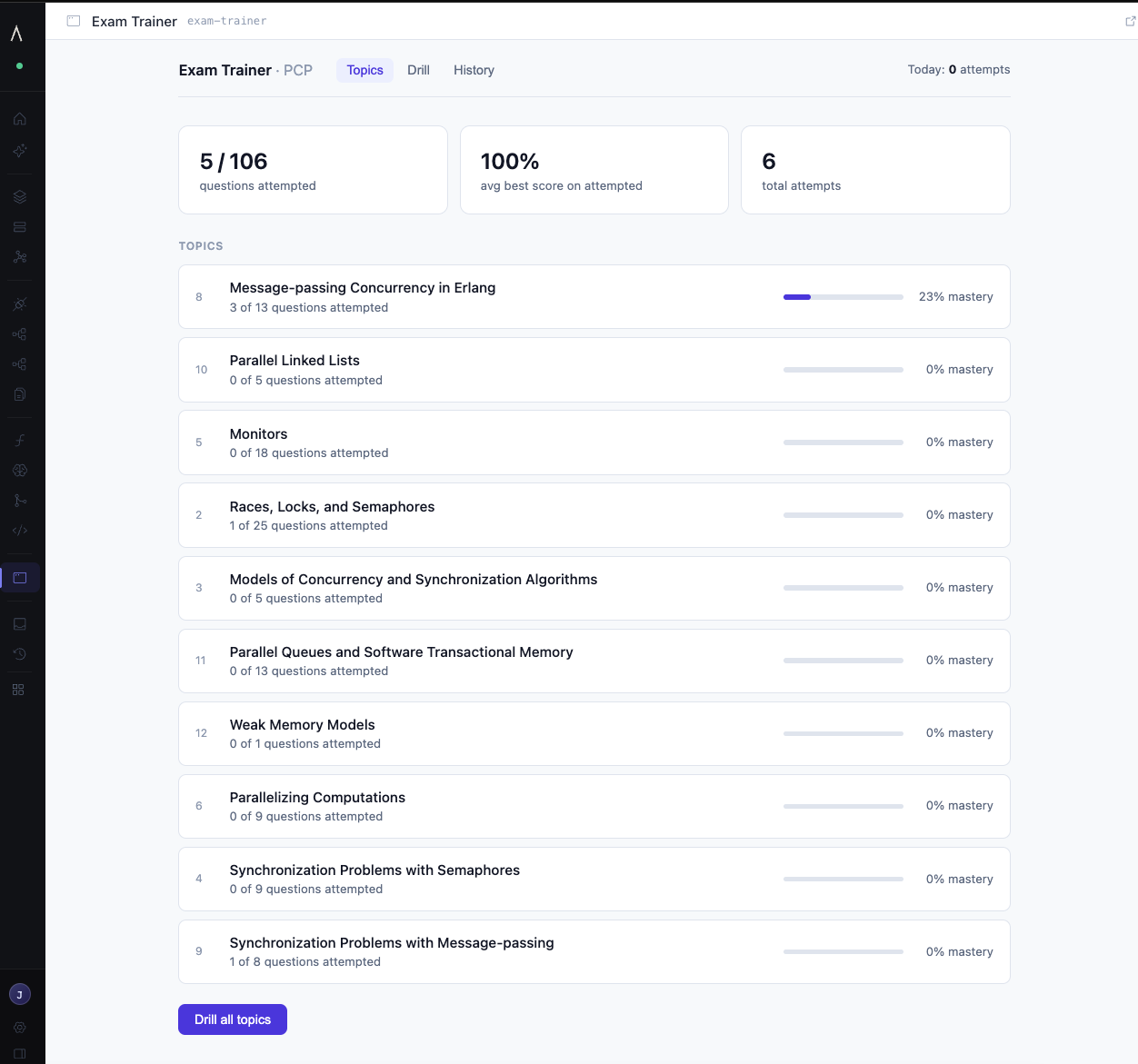

Exam Trainer reads the same ontology. Topics ordered by mastery, questions attempted against each, a drill mode and a history. No second database, no export.

Every attempt is written back as a study-attempt entity, so progress is data in the model rather than state in a client. The same numbers are available to the agent, to a workflow, or to whatever gets built next.

rhetra · apps · Exam Trainer
Exam Trainer app showing per-topic mastery, attempts and a drill action

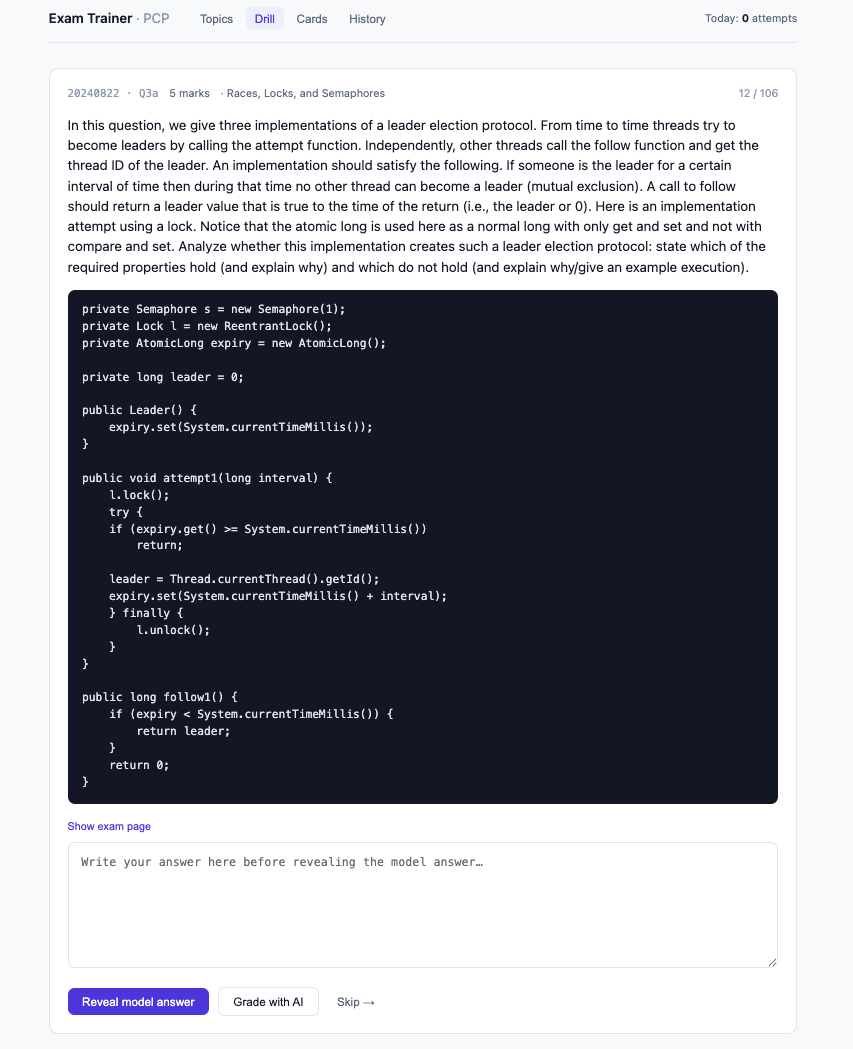

Drill puts one question up with the code from the paper. The buttons under the answer box are ontology actions rather than app-local state: Reveal model answer reads the linked answer entity, and Grade with AI runs the AI Grade action registered on the study-attempt type. The app calls them through the generated action runners.

rhetra · apps · Exam Trainer · drill
Drill view: one exam question with its code listing, an answer box, and the Reveal model answer, Grade with AI and Skip buttons

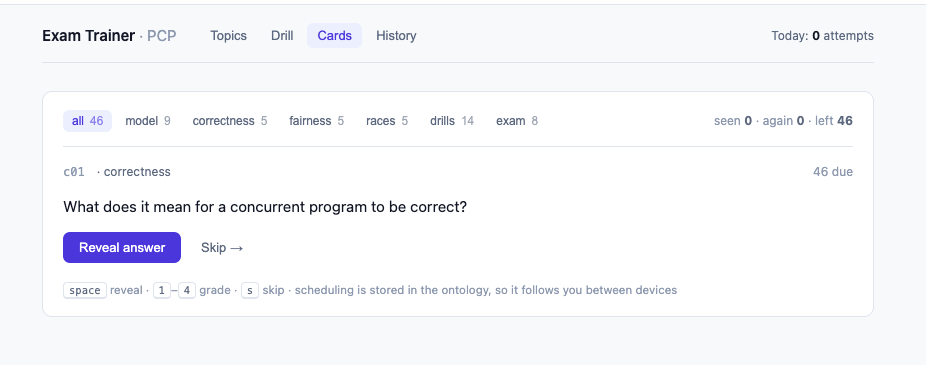

Cards is the same 106 questions on a spaced-repetition schedule. The schedule is stored in the ontology rather than the browser, so it follows you between devices.

rhetra · apps · Exam Trainer · cards
Cards view: 46 due questions faceted by topic, with reveal, grade and skip keyboard shortcuts
5 PDFs in 106 questions out 12 topics 31 links $0.0553 149.3 seconds
The automation

Counting the attempts

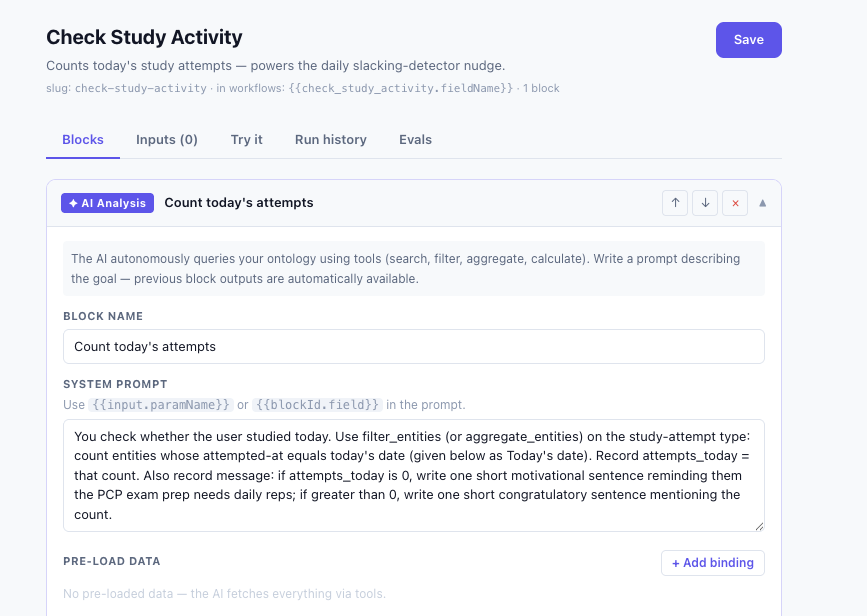

Because the attempts are entities, counting them is a logic function rather than a query someone has to write. One AI block, no pre-loaded data: it reaches into the ontology with filter_entities and aggregate_entities and returns two fields, attempts_today as a number and a one-sentence message.

rhetra · logic · check-study-activity
The check-study-activity logic function: one AI Analysis block with its system prompt, and no pre-loaded data
The nudge

A workflow that notices you skipped

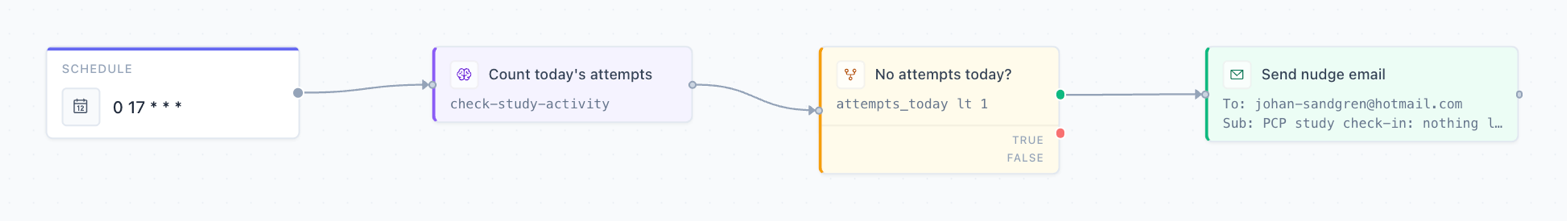

Three steps on a schedule. At 17:00 the workflow runs the function, checks whether attempts_today is below one, and on the true branch sends the email. The count comes from the same entities the app writes, so nothing has to be kept in sync.

rhetra · workflows · Daily Study Nudge
The Daily Study Nudge workflow: a daily schedule, the check-study-activity step, a condition on attempts_today, and a send-email step on the true branch

schedule 0 17 * * * · condition attempts_today lt 1 · 3 steps

A study app and a market desk
are the same build.

Course PDFs are an unusually small dataset. The primitives underneath are the ones that run eleven thousand tickers: a pipeline, an ontology, links, an app, a workflow.
